Hey,

guys this our first post and we hope u like it .

Step 1 :- Things you need

arduino IDE

to download the attiny files click on the link enter your email id and the file will be sent to your email id and exract it in the hardware file in your arduino IDE

1- arduino uno

1- attiny 45 or 85

1- breadboard

few jumper wires

1- 10 uf capacitor

Optional (if you u want it permanent )

1- perfboard

1- 1 led any colour that u like

1- 220 ohms resistor

and some pin headers

Step 2:- :Lets get starded

Open the arduino IDE

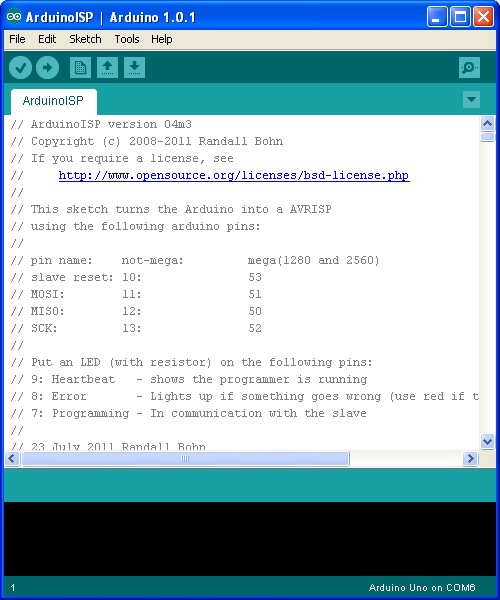

and open the arduino isp sketch from the examples and upload it on your uno Note(don't connect anything to arduino while uploading the isp sketch).

arduino IDE

arduino ISP

Step 3:- Connecting it with attiny

Unplug ur uno from the computer and connect it with attiny as shown in the picture below after wiring it then connect the 10uf capacitor the + wire to the reset pin and the - wire to gnd pin after wiring it connect it with usb

Here are the pinout

attiny pin 1- arduino pin 10

attiny pin 5- arduino pin 11

attiny pin 6- arduino pin 12

attiny pin 7- arduino pin 13

attiny pin 4- gnd

attiny pin 8- 5v

TA ADA!!!!!!!! now u can program attiny
